Rapid Deployment Portable Repeater

P25 Military Rapid Deployment Portable Repeater | P25 Digital Repeater

P25 Military Rapid Deployment Portable Repeater | P25 Digital Repeater

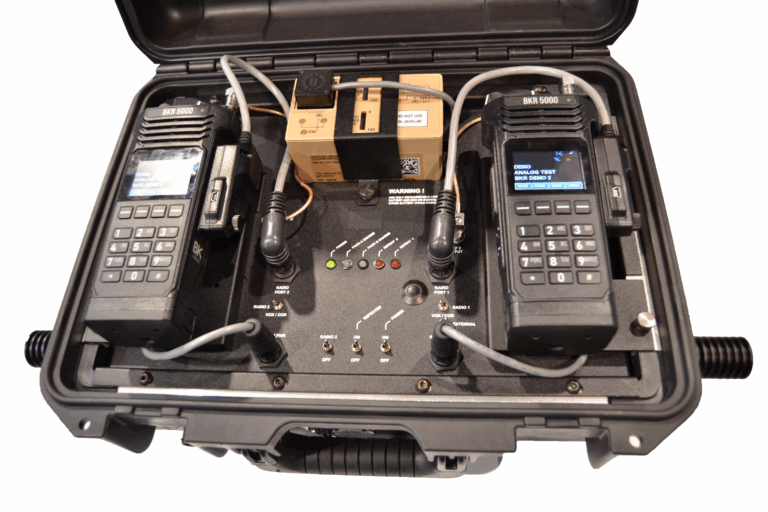

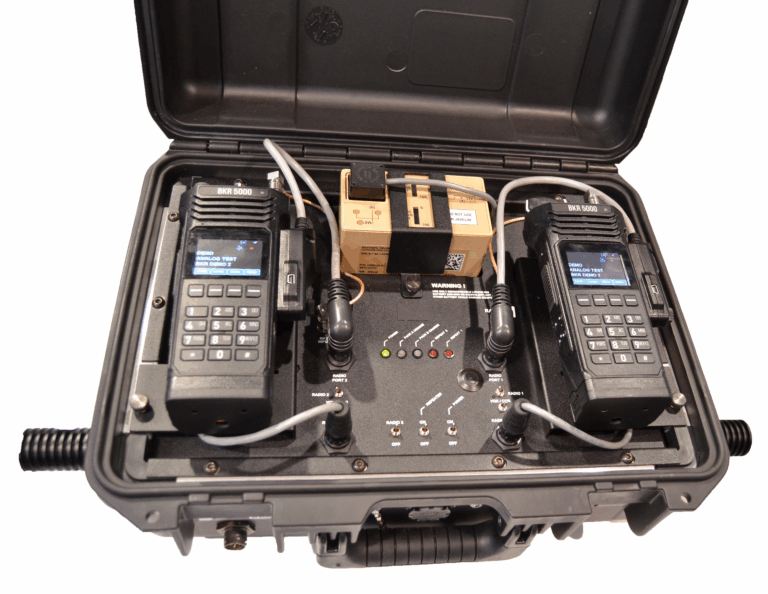

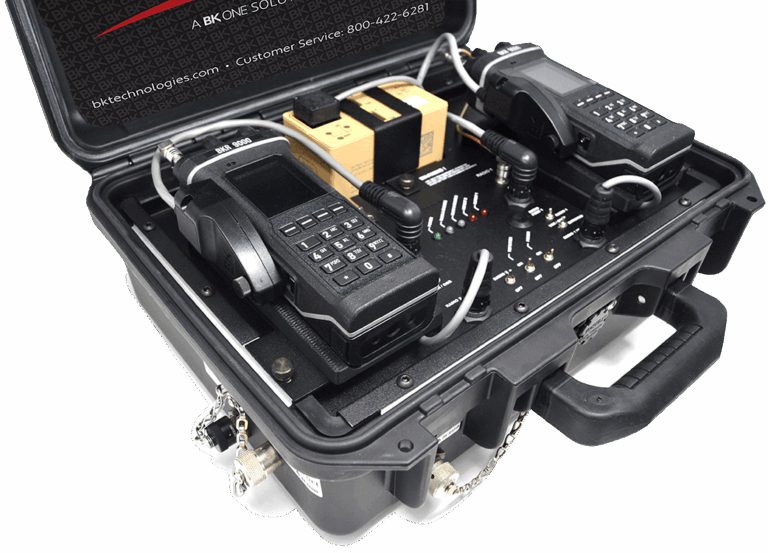

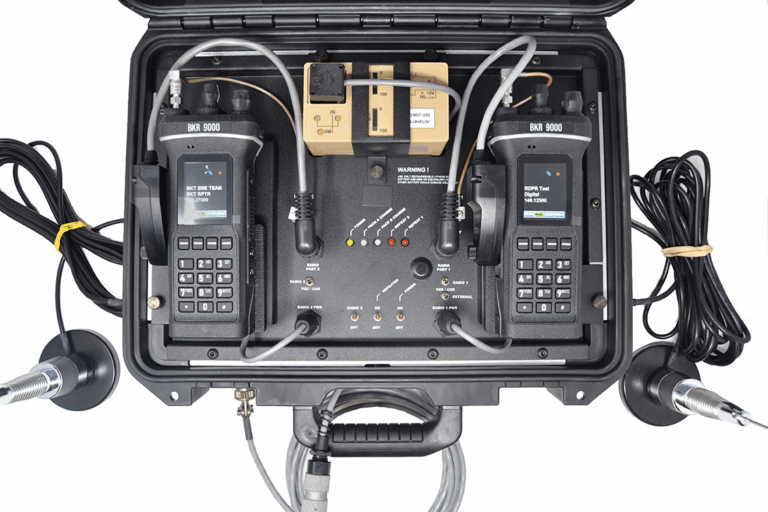

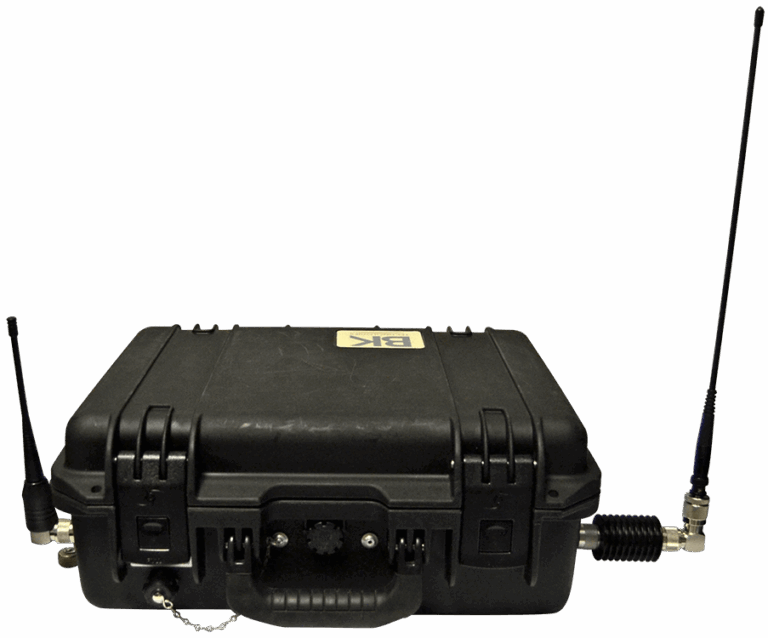

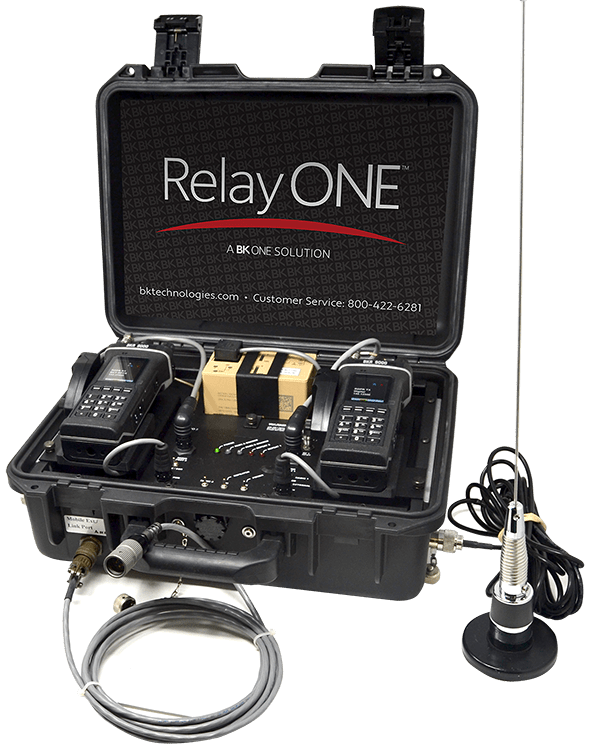

Plug and Play – The P25 Military Rapid Deployment Portable Repeater (RDPR) is designed to extend range and to facilitate inter operability with other radio platforms used in the Military. Mounted in a small, mobile and durable pelican case, the repeater is man portable or can be mounted in a vehicle. The repeater connects any two radios of the same type to double their effective range, or up to three different types to function as a Translator.

Top Features

  • Cross Mode (Analog – Digital)
  • Cross Band (HF/VHF/UHF/700/800 MHz)
  • Cross Protocol (Conventional – Trunking)
  • Cross Domain
  • Any Combination Above
  • (Type III to Type I Encryption)
  • High Power Option Available
  • Linked Repeater
  • Mobile Repeater




Includes LZAST82 functionality:

ST03: Programmable CTCSS/CDCSS
ST13: Local speaker and mic input
ST14: Local 99 channel selector
ST15: RX & TX Type N connectors
ST32: Front Panel adjustable Line I/O levels & Front panel RS232 port
ST08: VF audio delay
Enhanced AMBE +2 (V1.6) Vocoder
Digital audio interface to local controls
Ethernet interface with digital audio or digitized analog audio
Ethernet remote diagnostics and remote control
Tone remote control with E&M, 2 / 4 wire audio interface.

Supplementary APCO P25 Digital Radio Specifications:

Conforms to Standards: TIA102
P25 Repeater Throughput Delay: <80ms Frame Re-sync Interval: 180ms Signaling Rate: 9.6kbps Digital ID Capacity: 10,000,000 conventional Digital Network Access Codes: 4,096 network site Digital User Group Addresses: 4,096 network site P25 User Group Addresses: 65,536 Error Correction Techniques: Golay, BCH Reed-Solomon codes TIA102 RX Audio Processing Delay P25 Digital: TIA102 CAI Analog: 40ms
